Long Neck PN30 Brass Ball Valve U Type With Multilayer Press Connectors
REF. 46642
Long Neck PN30 Brass Ball Valve U Type With Multilayer Press Connectors
○ Order from factoryLead time 3–4 weeks from MT Spain factory

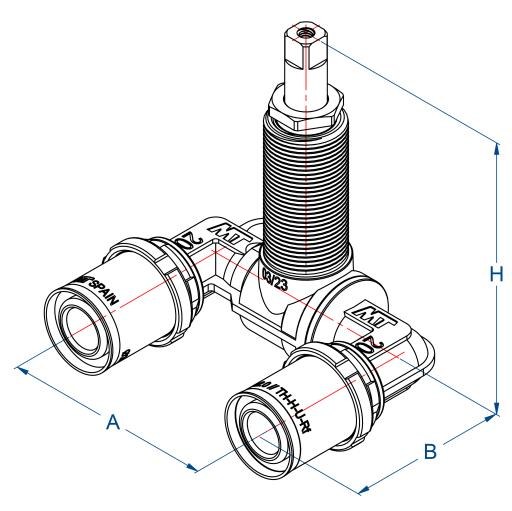

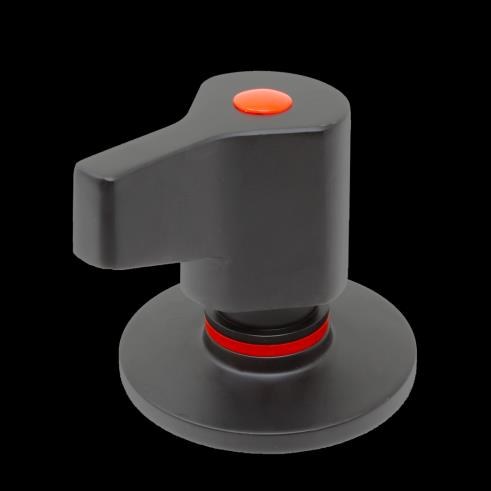

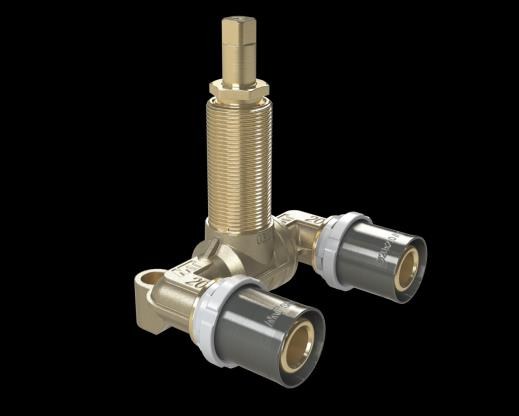

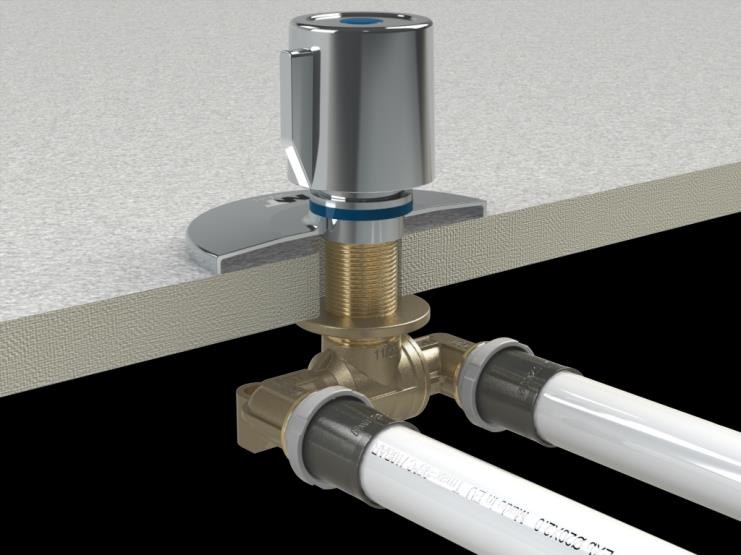

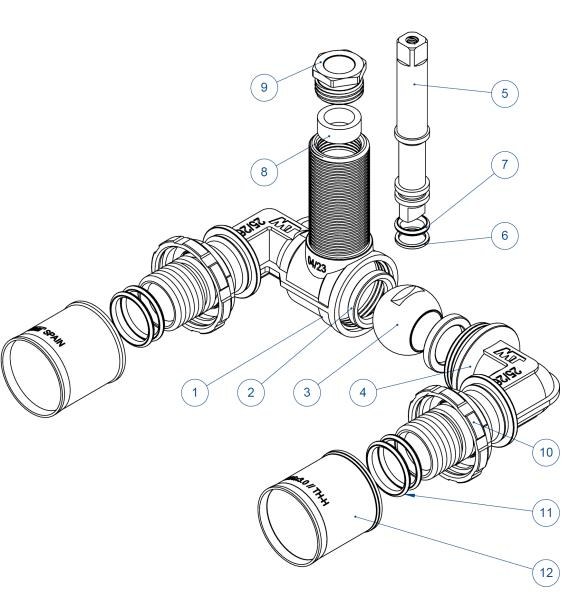

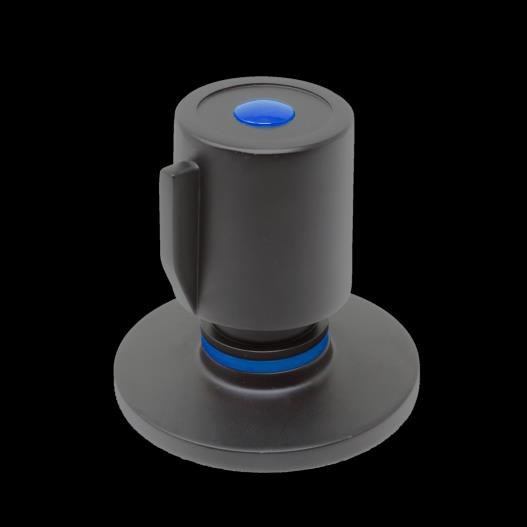

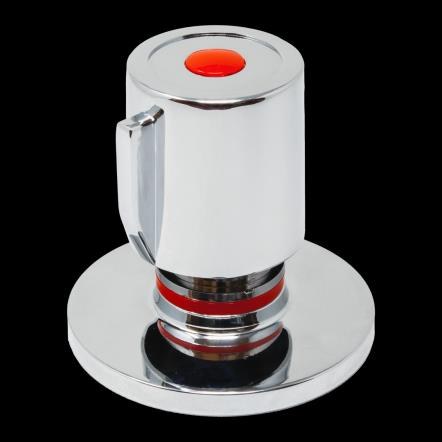

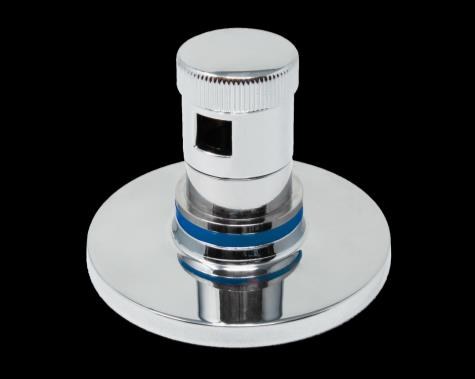

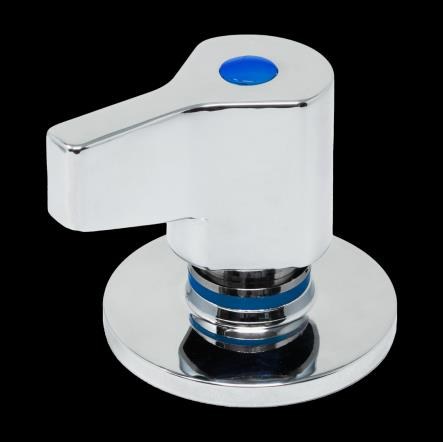

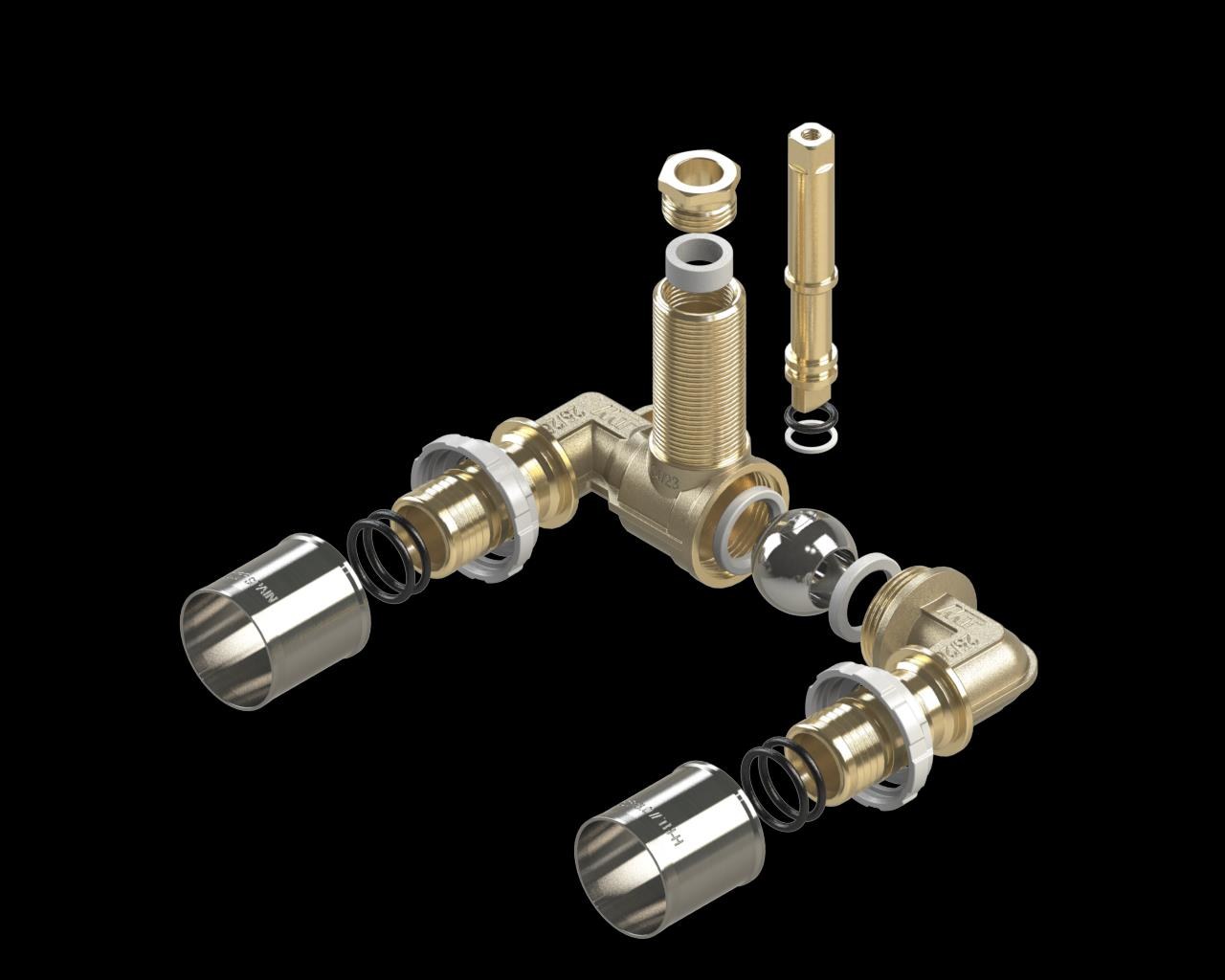

Long neck ball valve type U with press connectors for multilayer pipes. Body in brass CW617N, manufactured according to UNE EN 12165. PTFE Anti-leak doublé sealing system (NBR+PTFE). Designed and tested according to standard UNE EN ISO 21003. Compatible for Multilayer pipes of diameters: Ø16x2, Ø20x2, Ø25x2.5, Ø26x3 and Ø32x3. Compatible design with press crimper profiles type TH-H-U-Rfz. Guaranteed sealing with 2 EPDM o’rings (Kiwa Class III). Maximum working temperature : 95ºC at 10 bar. Guaranteed for Hot/Cold drinking water and compressed air applications. Compatible with MT handles.
| Size | SKU / Code | Weight | Availability | Price (ex-VAT) |
|---|---|---|---|---|
| Ø16 x 2.0 | 46642016 |
0.32 kg | ○ Order · 3-4 weeks | — |
| Ø20 x 2.0 | 46642020 |
0.33 kg | ○ Order · 3-4 weeks | — |
| Ø25 x 2.5 | 46642025 |
— | ○ Order · 3-4 weeks | — |
| Ø26 x 3.0 | 46642026 |
— | ○ Order · 3-4 weeks | — |
Prices shown for Dubai stock. Factory-order items: lead time 3–4 weeks from MT Spain. 5% UAE VAT applicable.
